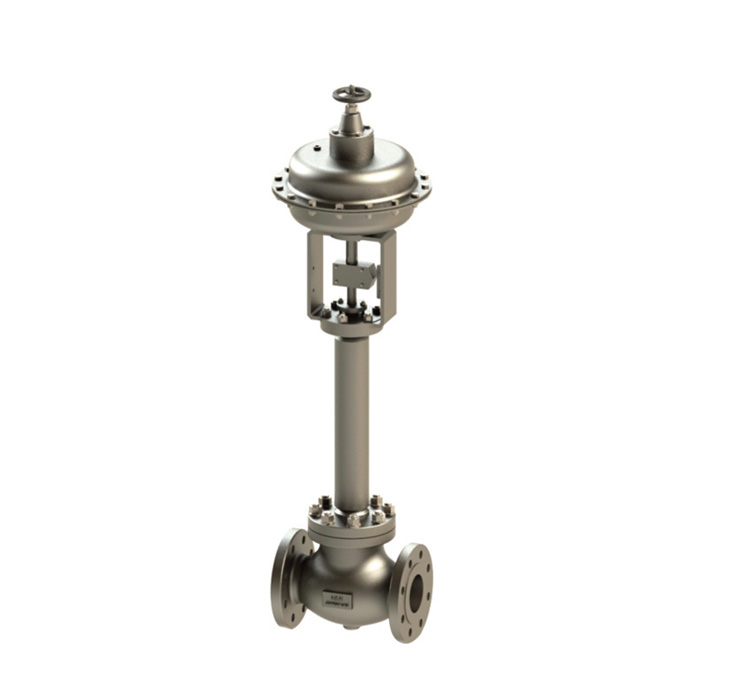

2-Way Cryogenic Pneumatic Control Valve

Model
HND-FGC (CC11C)
Applicable Fluid
Liquefied GAS / LNG / LPG / LEG / LN2 / LO2 / LAr
Applicable Pressure
1 ~ 11 kgf/cm², 1 ~ 320 kgf/cm²
Applicable Temperature
-196 ~ 125°C
End Connection
Flange : ANSI & JIS / Welding : B.W
Size (inch)
1/2" ~ 6"
Material
A351 CF8M
Procedure and test based on international standard
- ANSI rule for fitting, valve-flanged
- API rule Seat Tightness of pressure
- ASME rule for installation and operation

Introduction

The trip parts is devided into two of the guided single seat Type of cage ballanced single seat type
The extension bonnet allow gor use of cyogenic service up to -196°C
The actuators are designed compactly as multi-spring diaphram operated type, and permit high thrust.

Special feature

Compact and Simple
Smart Concept
Inherent Flow Characteristics
  • Equal percentage
  • Parabolic
  • Modified parabolic
  • Linear
  • Quick opening
Accessory : P/P, E/P positioner P/P, E/P controller
Fluid : N2 Gas, CH4 Gas, Glyco Water, Fresh Water, Stream
Temperature : Cryogenic~Ambient Temp. [-196c ~ 125c/-321F ~ 260F]
Service
  • Storage Tanks or Cryogenic Storage Tanks
  • LNG Carrier Vessel, Liquefied Gas Storage Tank
  • LNG Carrier Vessel, LEG Storage Tank Refinery Plant
Used Material
  • Stainless steel or equivalent for steel componets Teflon for gaskets
