Fuel Valve Train Methanol
- Fluid
- Methanol(MeOH)
- Design pressure
- 16bar
- Control air pressure
- 5 ~ 9bar ISO 8573-1 Class 7.7.3
- Design Temperature
- -25 ~ 60°C
- Power Supply
- DC 24V -25%/+30%
- Main Line Size
- 1", 1- 1⁄2", 2", 2- 1⁄2",
- Ex Classification
- Ex eb db ia IIC T4 Ga/Gb
Introduction

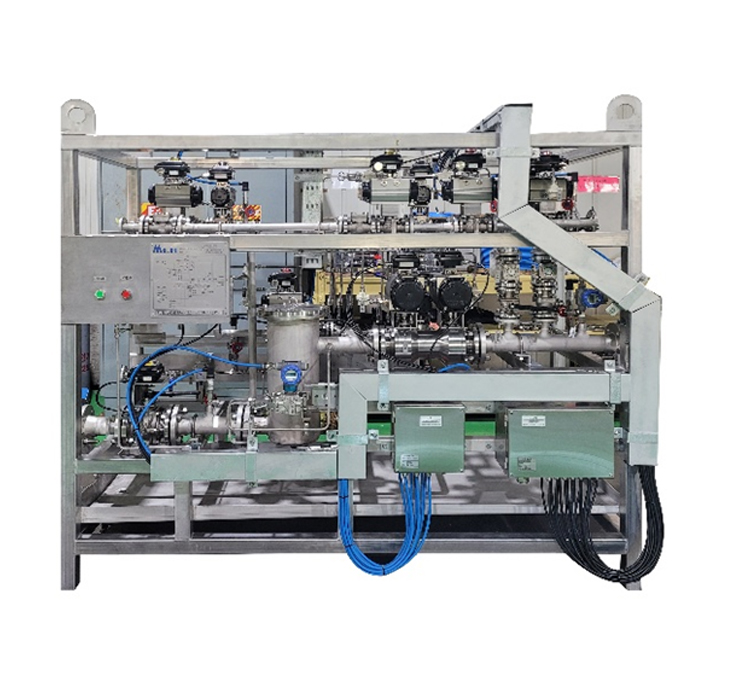

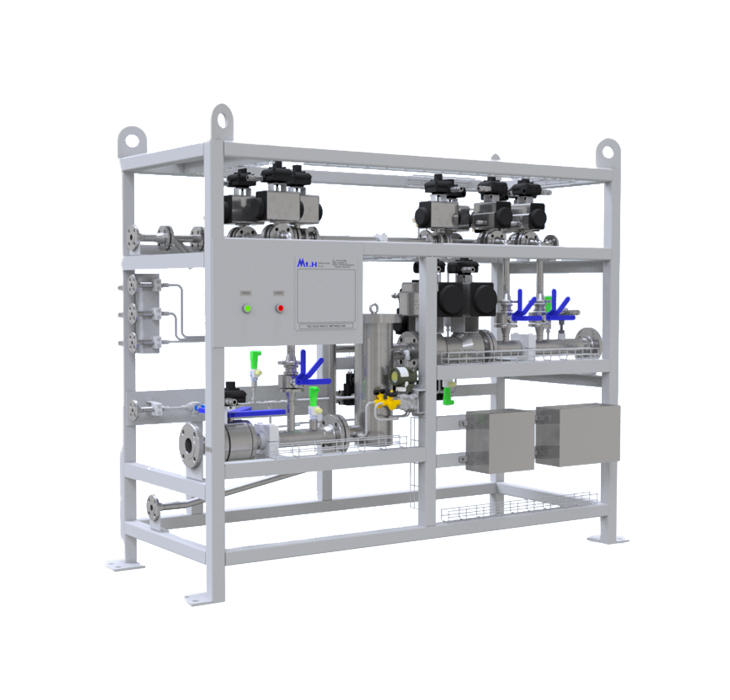

The Fuel Valve Train is a system consisting of valves, piping and electrical equipment to control the flow of methanol fuel from the LFSS(Low-flashpoint Fuel Supply System) to the engine.
It is supplied to HD Heavy Industries as a shop testing facility and used for engine testing, and its performance has been verified.
It is supplied to HD Heavy Industries as a shop testing facility and used for engine testing, and its performance has been verified.
Application
Valve Design Rule and Standard : ASME B 16.34, API 607
Cable Rule and Standard : IEC 60092 series, IEC 60332 series
Electrical Installation Rule and Standard : MAN-ES 0743606-1, IEC 60092 series
Welding Rule and Standard : MAN-ES 0743612-0, ISO 5817
Cable Rule and Standard : IEC 60092 series, IEC 60332 series
Electrical Installation Rule and Standard : MAN-ES 0743606-1, IEC 60092 series
Welding Rule and Standard : MAN-ES 0743612-0, ISO 5817
Special feature
Customized compact sizes available
Designed for installation in Explosion-proof zone
Fluid flow control is possible for a large range of voltage changes
Additional water line option available for Piping Flushing
Designed for installation in Explosion-proof zone
Fluid flow control is possible for a large range of voltage changes
Additional water line option available for Piping Flushing
